SAFESEPT BLUNT NEEDLE

  • FEATURES

    SafeSept Blunt Needle™ requires 10% less insertion force*  than a standard transseptal needle when inserted over a SafeSept® Transseptal Guidewire

    SafeSept Blunt Needle™ requires 36% less insertion force* with a SafeSept® Transseptal Guidewire  than a standard transseptal needle without a SafeSept® Transseptal Guidewire*

    SafeSept Blunt Needle™ tip is less traumatic, requiring 2.5 times more force* to puncture than a standard transseptal needle tip without a

    SafeSept® Transseptal Guidewire*

    ­Non skiving design

    Clear hub to visualize devices and fluids

    ­Ergonomic hub with integrated stopcock and arrow indicator for curve direction

    ­Blunt Needle provides column support to any adult transseptal introducer system

    Smooth bore on inside of cannula to facilitate smooth passage of SafeSept® Transseptal Guidewire

    ­Mimics shape of standard transseptal needle curves

    ­Available in Curve 0 and Curve 1 shapes



    *Calculated from average SafeSept Blunt Needle™ and transseptal needle puncture forces during in vitro design qualification testing.



  • DESCRIPTION

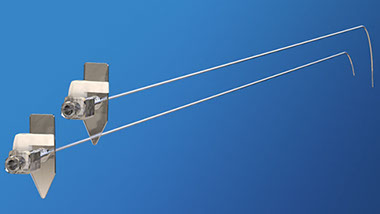

    Specially designed to create the primary puncture in the interatrial septum when used with the SafeSept® Transseptal Guidewire.

    The SafeSept Blunt Needle™ replaces a traditional transseptal needle when using the SafeSept® Transseptal Guidewire for creating the primary puncture in the interatrial septum, providing access through the septum from the right side of the heart to the left side.

    Designed to be used with the .014 inch diameter SafeSept®, the SafeSept Blunt Needle™ comes in equivalent lengths of 71 cm, 89 cm, and 98 cm, and is available in Curve 0 and Curve 1 shapes.

    Reduce your risk of complications, and turn the stress of a transseptal stick into a routine procedure.

  • SPECIFICATIONS

    SAFESEPT BLUNT NEEDLE

    Model

    Size

    Length

    Curve and Angle

    SBN071

    18G/21G

    71cm

    0

    59°

    SBN089

    18G/21G

    89cm

    0

    59°

    SBN098

    18G/21G

    98cm

    0

    59°

    SBN171

    18G/21G

    71cm

    1

    72°

    SBN189

    18G/21G

    89cm

    1

    72°

    SBN198

    18G/21G

    99cm

    1

    72°

    Each  SafeSept Blunt Needle kit includes:

    One  needle

    Five (5) kits per box

  • INFO / VIDEO
