TIP DESIGN REQUIRES LESS FORCE

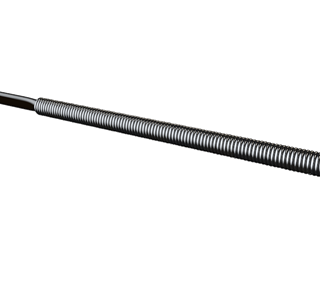

RADIOPAQUE COIL FOR FLUOROSCOPY

"J" SHAPE ALLOWS SAFE ADVANCEMENT

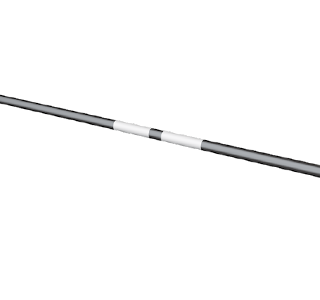

MARKER BANDS AID TIP POSITIONING

STRAIGHTENER AIDS IN TIP INSERTION

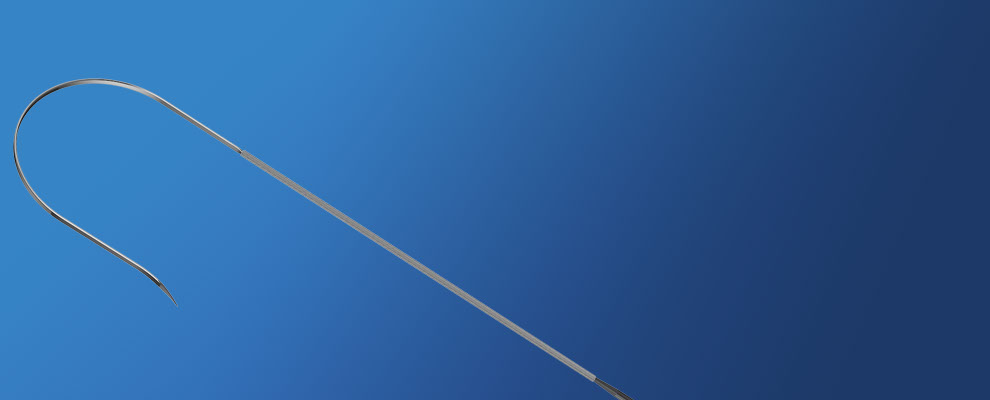

SafeSept® Transseptal Guidewire Transseptal Access System

ORDER

TRANSSEPTAL ACCESS

ALL PRODUCTS

DESCRIPTION

SPECIFICATIONS

INFO / PUBLICATIONS

VIDEOS

The very sharp tip of the SafeSept® requires less force than a conventional transseptal needle to cross the interatrial septum, making access easier, especially in difficult or previously failed cases, improving the safety of whatever introducer system you are currently using.

The SafeSept is the first significant advance in left atrial access since the Brockenbrough needle. Specifically designed to cross the interatrial septum at the fossa ovalis when supported by a transseptal introducer, SafeSept is a 135cm long, 0.014 inch diameter nitinol guidewire specifically designed for transseptal puncture. After the transseptal dilator has “tented” the fossa ovalis, effortless advancement of the SafeSept tip perforates the membranous fossa, requiring less force than a standard transseptal needle. Unsupported by the needle and dilator, the tip of the wire assumes a ‘J’ shape, rendering it incapable of further tissue penetration.

A radiopaque coil along the shaft allows for fluoroscopic visualization of the wire within the left atrium while proximal marker bands help determine the approximate location of the SafeSept tip in relation to the tip of the needle. The transseptal needle, dilator and sheath are then advanced “over the wire” into the left atrium with virtually no possibility of aortic or pericardial perforation.

Tenting the Interatrial Septum

Advancing SafeSept into the Left Atrium

Needle, Dilator and Introducer

Tracking over SafeSept

SAFESEPT TRANSSEPTAL GUIDEWIRE

Model

Length

Diameter

SS-135

135cm

.014"

Each SafeSept Transseptal Guidewire kit includes:

One transseptal guidewire

One tip straightener

Five (5) kits per box

PRODUCT INFORMATION DOWNLOADS

Product Sheet

Product Sheet-LoRes

Directions for Use

PUBLICATION DOWNLOADS

Asmundis C, Chierchia GB, Sarkozy A, et al. “Novel trans-septal approach using a Safe Sept J-shaped guidewire in difficult left atrial access during atrial fibrillation ablation,” Europace (2009) 11 (5):657-659.

Laish-Farkash A, Katz A, Fishman E, et al. “Clinical Experience with Routine Use of SafeSept J-Shaped Guidewire for Transseptal Puncture.” Barzilai Medical Center, Ashkelon, Israel, Cardiology Department, Electrophysiology Unit, Faculty of Health Sciences, Ben Gurion University, Ashkelon, Israel.

Wadehra V, Buxton AE, Antoniadis AP, et al. “The use of a novel nitinol guidewire to facilitate transseptal puncture and left atrial catheterization for catheter ablation procedures,” Europace (2011) 13 (10):1401-1405.

De Ponti R. “Transseptal catheterization for ablation in the left heart: what to do when the door is locked up tight?” Europace (2010) 12 (5):604-605

Wieczorek M, Hoeltgen R, Akin E, et al. “Use of a novel needle wire in patients undergoing transseptal puncture associated with severe septal tenting,” J Interv Card Electrophysiol (2010) Jan; 27(1):9-13.

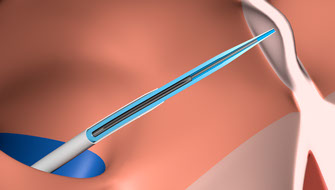

VIEW INSTRUCTIONAL VIDEO

SafeSept Transseptal Guidewire
Instructional Video 4:38

TRANSSEPTAL ACCESS USING SAFESEPT GUIDEWIRE

Watch entire video including Feature overview and Suggested Procedure. 4:38

VIEW INSTRUCTIONAL VIDEO IN SECTIONS

SafeSept Transseptal Guidewire
Features Video 1:32

SafeSept Transseptal Guidewire
Suggested Procedure 1:59

SafeSept Transseptal Guidewire
Product Information 1:03

DEVICE FEATURES

Device description and feature overview. 1:32

TRANSSEPTAL ACCESS:
A SUGGESTED PROCEDURE

Achieving access, positioning and penetration of the fossa ovalis for LA access. 1:59

WARNINGS, INDICATIONS, AND CONTRAINDICATIONS

Important information regarding the SafeSept. 1:01

ADD TO CART

Features

Radiopaque coil makes the 0.014 inch diameter wire easily visible fluoroscopically

Specially designed tip configuration requires less force than a standard transseptal needle, enabling effortless penetration of the fossa

‘J’ shape allows safe advancement to assure proper wire location within left atrium

Transseptal needle and dilator are rendered atraumatic when tracking over the SafeSept

Proximal marker bands help determine SafeSept tip location relative to trans-septal needle tip during the procedure

135cm length for compatibility with all currently available adult transseptal introducer systems

SafeSept is a registered trademark of Pressure Products Medical Supplies, Inc. Patents 9,821,145; 8,992,556; 8,500,697; 8,292,910; 8,157,829; EP1542593; EP1542593; JP4496223. Other U.S. and worldwide patents pending.
