SafeSheath® CSG Braided Core
Hemostatic Peel-away Introducer with Braided Core for CS Access
Splittable-valved, peel-away hemostatic introducer system combined with a high-torque, radiopaque-tipped sheath and braided core for CS access.

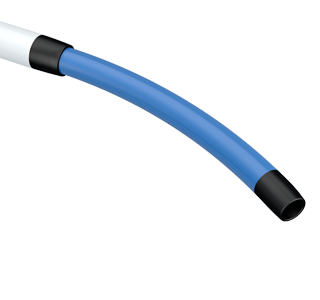

- Braided, soft-tipped core designed for enhanced torque control and procedural stability

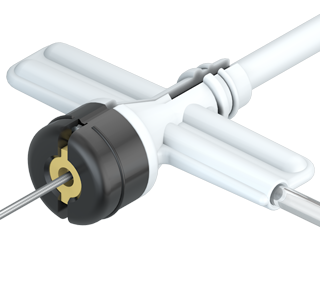

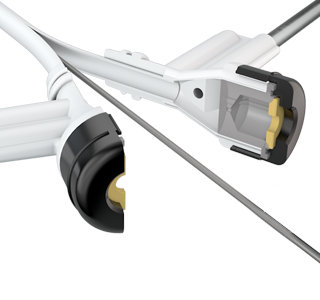

- Peel-away sheath with an integrated break-away hemostasis valve

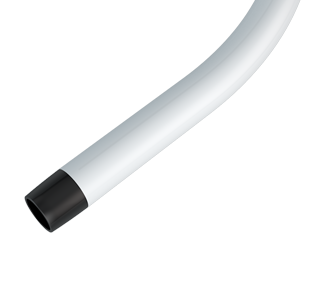

- Radiopaque tip markers on both sheath and core for improved fluoroscopic visibility

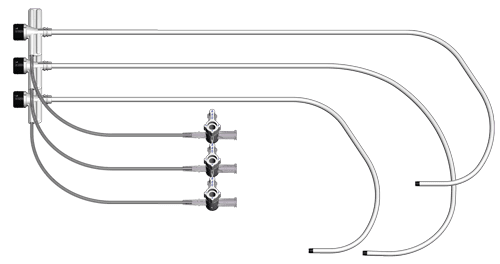

- Multiple angulation options to support precise CS lead placement
- Available in standard, long, and jumbo sizes to accommodate varied CS anatomy

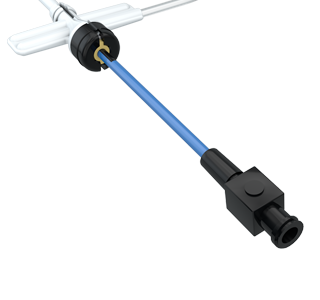

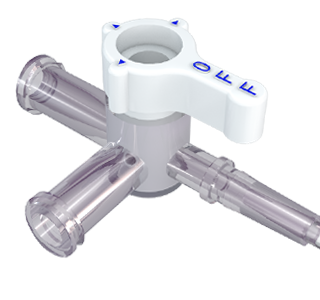

- Side port enables “keep open” infusion and contrast injection
- Helps minimize the risk of blood loss and air embolism
- Familiar handling similar to a standard peel-away introducer
- Can remain in place during placement of additional leads
- Allows rapid lead exchange without additional interventions or vascular access
Product Description
The SafeSheath® CSG Worley Braided Core Series is a splittable-valved, peel-away hemostatic introducer system that combines a unique curve design with a high-torque, radiopaque-tipped sheath and braided core for CS access.
Designed for CS access, the SafeSheath® CSG’s braided core provides improved torque control. Both the introducer and core are radiopaque-tipped for better fluoroscopic visualization. Multiple introducer angles and the advanceable core improve ease of CS placement.
The CSG Worley enters the coronary sinus and remains in position during angiography and lead placement, remaining hemostatic during subsequent procedures. Incorporating a unique sheath curve, the SafeSheath® CSG Worley is designed specifically for ventricular resynchronization therapy where the right-sided chamber is significantly dilated.

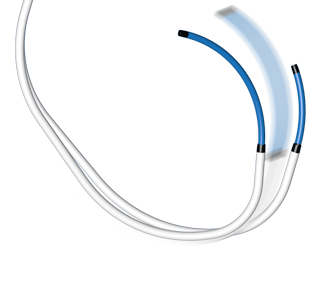

The long, gentle throw of the Worley causes its tip to virtually fall into the coronary sinus OS. Various shapes can be created by advancing the braided core into the sheath, better facilitating CS cannulation.
Made from crush-resistant material, the CSG Worley is available in standard, long, and jumbo sizes, enabling access to any anatomy. All 9 French CSG sheaths can be used as a coronary sinus access platform for our family of CSG Worley Telescoping LV introducers.
The H. Lee SafeSheath CSG splittable hemostatic sheaths are protected by Patent Insurance. USA Patent 7,462,184. European Patent EP1360972. Other USA and Worldwide Patents pending. SafeSheath and CSG are registered trademarks of Pressure Products Medical Supplies, Inc.
Safesheath® CSG Worley Braided Core Series
| CSG/WORLEY/BCor-1-09 | Standard | 40 cm | 9 French I.D. | 0.157" | 0.130" | 0.122" |
| CSG/WORLEY/L/BCor-1-09 | Long | 50 cm | 9 French I.D. | 0.157" | 0.130" | 0.122" |
| CSG/WORLEY/BCor-2-09 | Jumbo | 50 cm | 9 French I.D. | 0.157" | 0.130" | 0.122" |
| Each kit includes: | ||||||
| P.T.F.E Guidewire | 135 cm | — | 0.035" | — | — | |
| Curved Guiding Core | — | — | 0.118" | 0.095" | 0.092" | |
| Straight Vessel Dilator | — | — | — | — | 0.038" | |
| Transvalvular Insertion Tool (TVI) | 1.75" | 7 French | 0.117" | 0.097" | — | |
| Needle | 2.75" | 18 gauge | — | — | — | |
| Syringe | — | 12 cc | — | — | — |
Each SafeSheath® CSG Worley Braided Core Series Introducer System kit includes:
-
- One curved guiding core
-
- One 18g needle
-
- One 12cc syringe
-
- One guidewire
-
- One transvalvular insertion tool (TVI)
-
- Five (5) kits per box
