SafeSheath® II Worley Right-sided Access Introducer
Hemostatic Peel-away Introducer System for Right-sided CS Access
Gains access to the RA, for delivery of catheters into the CS or pacing leads into the right ventricle making right-sided LV or RV access as easy as coming from the left.

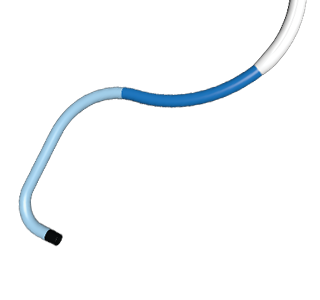

- Curved shape designed specifically for making LV or RV access as easy as approaching from the left side
- Enables access to the right atrium, for subsequent delivery of catheters into the coronary sinus or pacing leads into the right ventricle
- Virtually no chance of kinking during right-sided access introduction

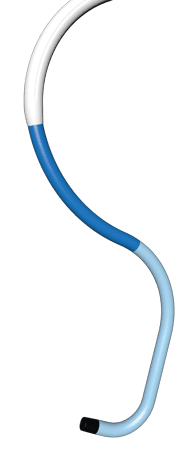

- Uniquely shaped distal curve acts as a pivot point for CS access catheter, providing stability and control during lead placement and removal

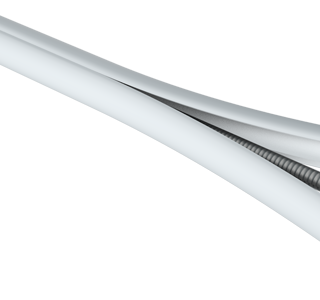

- Extruded score line peel-away sheath for clean, even peeling during removal

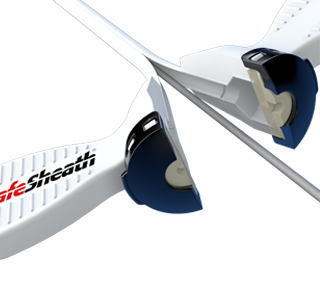

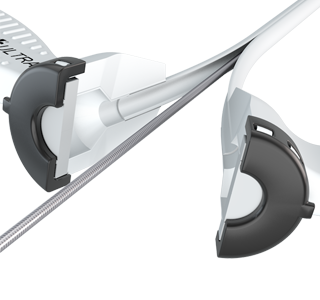

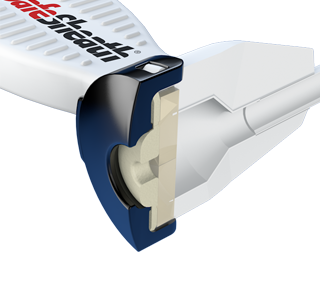

- Ergonomic, easy-splitting break-away hub

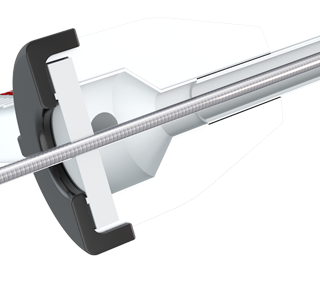

- Hemostatic valve with low insertion and withdrawal forces permits multiple lead insertions without further interventions
- Convenient sideport with three-way stopcock for infusion and contrast injection

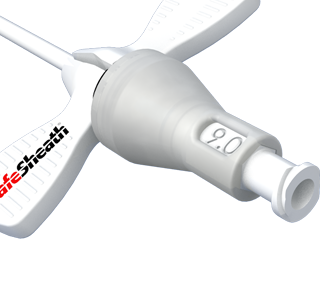

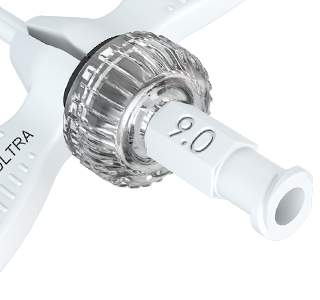

- French size printed on handle and indicated by color-coded introducer cap
- Elastomer snap-locking dilator connector with French size embossed on handle
- Reduced risk of blood loss and air embolism
Product Description
The unique curve of the SafeSheath® II Worley Right-sided Access introducer is designed to gain access to the right atrium for subsequent delivery of catheters into the coronary sinus or pacing leads into the right ventricle, making right-sided LV or RV access as easy as coming from the left.
The SafeSheath® II family of introducers combines a tear-away sheath and hemostatic valve to reduce back bleeding and the possibility of air embolism.When positioned in the high RA, the unique distal curve provides a convenient pivot point for directing CS access catheters to the coronary sinus, such as the SafeSheath® Worley Telescopic LV introducer system, creating a stable work platform for better control during lead placement, and reduced risk of lead dislodgement during CS catheter removal. The Right-sided introducer is also perfect for placing leads into the right ventricle and right ventricular outflow tract.
The SafeSheath® II Worley Right-sided Access Introducer is a breakthrough technology for left ventricular pacing from the right subclavian and is also an excellent platform for standard RV pacing.
USA and Worldwide Patents Pending.
SafeSheath is a registered trademark of Pressure Products Medical Supplies, Inc.
“Guidewire for SafeSheath® II Worley Right-sided Access Introducer is 50cm long with O.D of .038.”

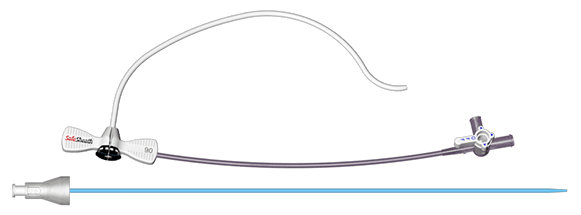

Safesheath® II Worley Right-Sided Access Introducer
| SSR9 | 9.0 French | Black | 23 cm | 28 cm |

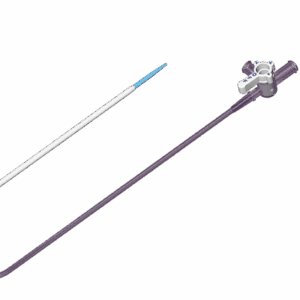

Each SafeSheath® II Worley Right-sided Access Introducer System kit includes:
- One tear-away sheath w/side port
- One dilator

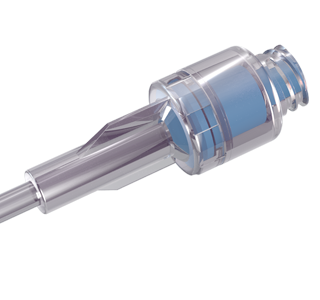

- One 18g needle
- One 10cc syringe
- One 50cm guidewire
- Five (5) kits per box
