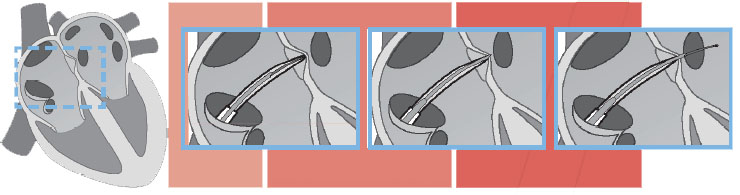

Specially designed to puncture the interatrial septum to gain access to the left side of the heart.

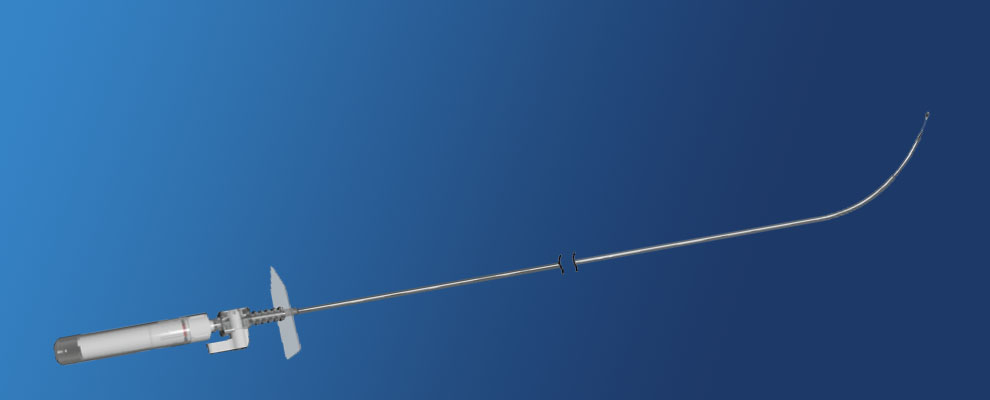

Introducing the SafeSharp Transseptal Needle™, a stainless-steel cannula with a proximal plastic handle and hub, a distal curve to facilitate positioning, and an offset beveled tip designed to puncture the interatrial septum with minimal force during a transseptal procedure
Reduce your risk of complications,and turn the stress of a transseptal stick into a routine procedure. The SafeSharp Transseptal Needle™ is part of a complete line of vascular access and lead delivery products and accessories from Pressure Products.

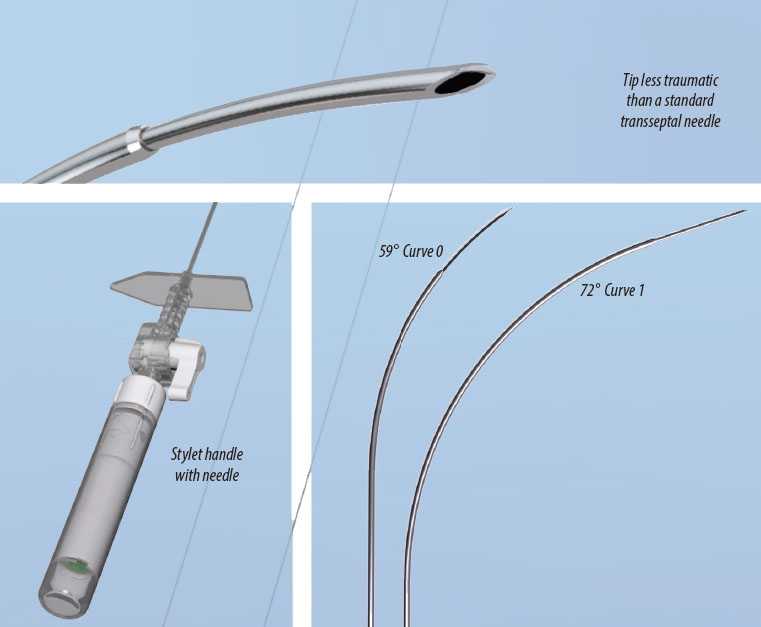

The proximal end of the Transseptal Needle has a pointer hub to indicate the distal curve direction, and a two-way stopcock handle and Luer lock connection for flushing or aspiration. A stylet assembly inserted into the transseptal needle consists of an elongated .018” diameter nitinol wire with an intermediate .013” diameter section, a bulbous distal tip, and a proximal clear plastic handle with an internal mechanism configured to both provide feedback on the position of the stylet tip as well as to maintain the stylet tip in the extended position to reduce the possibility for further penetration of the needle tip after the initial crossing of the septum.
Part Number | Model | Description | Length | Curve | Curve Angle |
---|---|---|---|---|---|
70010-22 | CLICK071 | 71cm SafeSharp Transseptal Needle™ | 71 cm | 0 | 59° |
70010-23 | CLICK098 | 98cm SafeSharp Transseptal Needle™ | 98 cm | 0 | 59° |
70010-24 | CLICK171 | 71cm SafeSharp Transseptal Needle™ | 71 cm | 1 | 72° |
70010-25 | CLICK198 | 98cm SafeSharp Transseptal Needle™ | 98 cm | 1 | 72° |
Average puncture force lower than the average puncture force of a BRK XS needle
Smoother, and more gradual puncture than a BRK needle, minimizing the characteristic “pop” and inadvertent advancement during crossing
Visual, tactile, and audible feedback after puncturing the septum
Needle hub indicates direction of cannula curve
Non skiving design
Available in lengths of 71 cm and 98 cm and in Curve 0 and Curve 1 shapes
The H. Lee SafeSheath® CSG® splittable and SafeSheath® CSG® Braided sliceable hemostatic sheaths are protected by Patent Insurance. USA Patents 5,409,463, 6,966,896, 7,384,422 and 7,993,351. Japanese Patent 4695878. European Patents EP0593685, EP1539277 and EP1542630. The Braided Sheath Cutter is covered by USA Patent 6,497,681. Other USA and Worldwide Patents pending. SafeSheath and CSG are registered trademarks of Pressure Products Medical Supplies, Inc.
