Needle Free™ Transseptal Cannula
Replaces Traditional Transseptal Needle
Specially designed to create the primary puncture in the interatrial septum when used with the SafeSept RF™ Transseptal Guidewire
- Clear hub to visualize devices and fluids.
- Light, ergonomic hub with arrow indicator for curve direction.
- Integrated stopcock with arrow indicator on handle.
- Cannula provides column strength to any adult transseptal introducer system.
- Smooth bore on inside of cannula to facilitate passage of SafeSept RF™ Transseptal Guidewire.
- Non-skiving design.
- Mimics shape of standard transseptal needle curves.

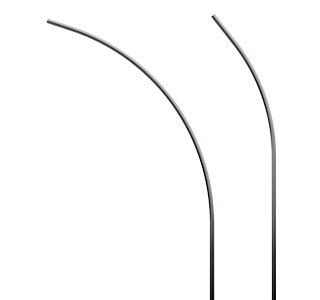

- Available in Curve 0 and Curve 1 shapes.
Product Description
The Needle Free™ Transseptal Cannula replaces a transseptal needle when using the SafeSept RF™ (SSRF) Transseptal Guidewire for creating the primary puncture in the interatrial septum, providing access through the septum from the right side of the heart to the left side.
Designed to be used with the SSRF™, the Needle Free™ Transseptal Cannula comes in equivalent lengths of 71cm, 89cm, and 98cm, and is available in Curve 0 and Curve 1 shapes.

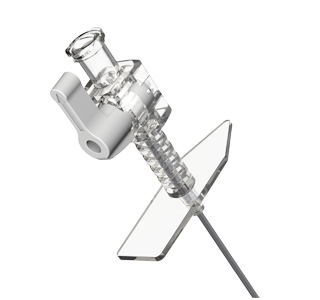

The clear, ergonomic hub allows easy visualization of devices and fluids during use, while the integrated stopcock with arrow indicator indicates curve direction. The Needle Free™ Transseptal Cannula is engineered with smooth internal bore to facilitate passage of the SSRF™.
Reduce your risk of complications and turn the stress of transseptal access into a routine procedure. Pair the Needle Free™ Transseptal Cannula with the SSRF™ for your safe, simple, and smart solution for transseptal procedures.
Needle Free™ Transseptal Cannula
| Model | Description | Size | Length | Curve | Curve Angle |
|---|---|---|---|---|---|
| TSC071 | 71cm Transseptal Cannula | 18G | 67.7 cm | 0 | 38 |
| TSC089 | 89cm Transseptal Cannula | 18G | 87.7 cm | 0 | 38 |
| TSC098 | 98cm Transseptal Cannula | 18G | 96.7 cm | 0 | 38 |
| TSC171 | 71cm Transseptal Cannula | 18G | 67.7 cm | 1 | 72 |
| TSC189 | 89cm Transseptal Cannula | 18G | 87.7 cm | 1 | 72 |
| TSC198 | 98cm Transseptal Cannula | 18G | 96.7 cm | 1 | 72 |
Each Needle Free™ Transseptal Cannula kit includes:
- One transseptal cannula.
- Five (5) kits per box.
