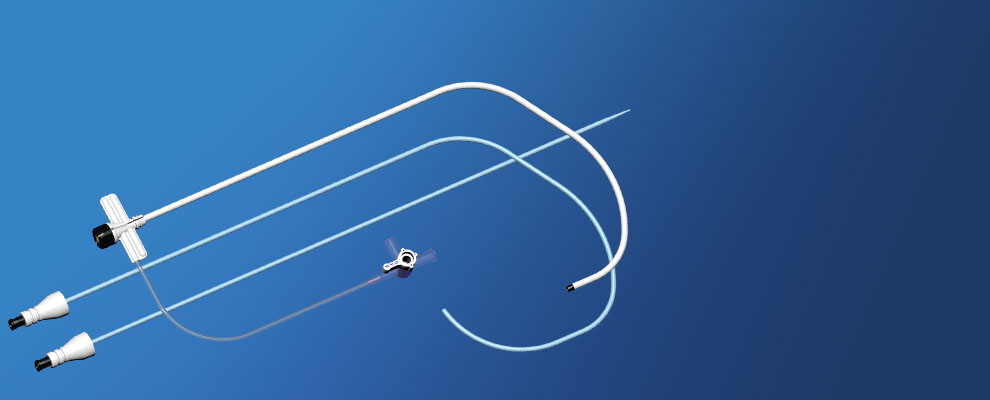

The SafeSheath CSG Extruded Core Series is a splittable-valved, peel-away hemostatic introducer system that combines a radiopaque-tipped sheath with a shapeable, extruded core for CS access.

SafeSheath CSG was designed to enter the coronary sinus and remain in position during angiography and lead placement, remaining hemostatic during subsequent procedures.

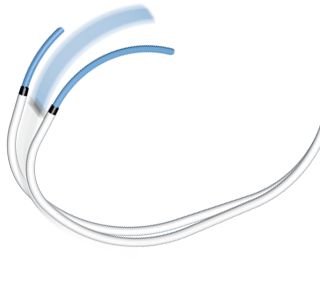

SafeSheath CSG Worley  Incorpo­rating a unique sheath curve, the Worley is designed specifically for ventricular resynchronization therapy where the right-sided chamber is significantly dilated, its long gentle throw causing its tip to virtually fall into the coronary sinus OS. The CSG Worley is also made from crush-resistant material and is available in standard, long and jumbo sizes.



SafeSheath CSG  The multipurpose 90° curve of our original CSG enables ease of CS cannulation, while the improved tip transition results in less traumatic tip placement.

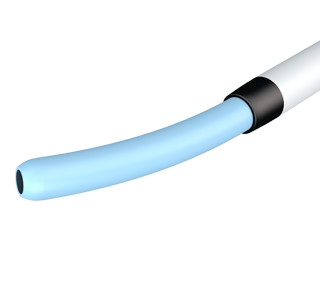

And now the introducer sheath is radio opaque-tipped for better fluoroscopic visualization.

All CSGs can be used as a coronary sinus access platform for our family of Worley Telescoping LV introducers.

SAFESHEATH CSG EXTRUDED CORE SERIES

Model

Curve

Length

Size

O.D.

I.D.

Tip I.D.

CSG/WORLEY-1-09

Standard

40cm

9 French I.D.

0.157"

0.130"

0.122"

CSG/WORLEY/L-1-09

Long

50cm

9 French I.D.

0.157"

0.130"

0.122"

CSG/WORLEY-2-09

Jumbo

50cm

9 French I.D.

0.157"

0.130"

0.122"

CSG-90-09

90° Curve

45cm

9 French I.D.

0.157"

0.130"

0.122"

Each kit includes:

P.T.F.E Guidewire

45° angle

135cm

—

0.035"

—

—

Curved Guiding Dilator

90° angle

63.9cm

—

0.118"

0.042"

0.038"

Worley 1 Guiding Dilator

180° angle

44.3cm

—

0.118"

0.042"

0.038"

Worley 2 Guiding Dilator

180° angle

53.3cm

—

0.118"

0.042"

0.038"

Worley L Guiding Dilator

180° angle

53.3cm

—

0.118"

0.042"

0.038"

Straight Vessel Dilator

—

—

—

—

—

Transvalvular Insertion Tool (TVI)

1.75"

7 French

0.119"

0.099"

—

Needle

2.75"

18 gauge

—

—

—

Each SafeSheath CSG Extruded Core Series Introducer System kit includes:

​One tear-away sheath w/side port

​One dilator

​One curved guiding dilator

​One 18g needle

​One guidewire

​One transvalvular insertion tool (TVI)

​Five (5) kits per box

Standard

Jumbo

Long

Original

DOWNLOADS

VIEW

Video Demonstration

Video Demonstration

SafeSheath Worley LV Introducers

Transvalvular Insertion Tool (TVI)

Balloon Venography Catheter



Features

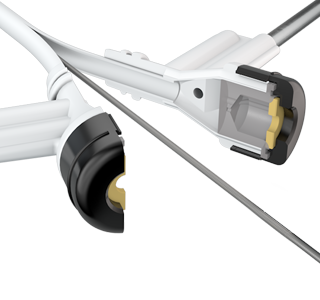

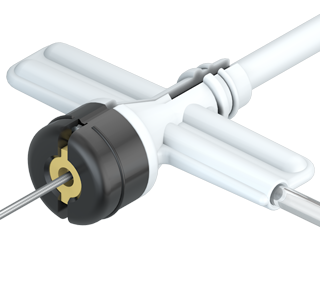

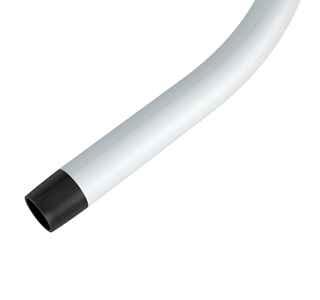

​Innovative peel-away sheath with break-away hemostasis valve and radio opaque tip

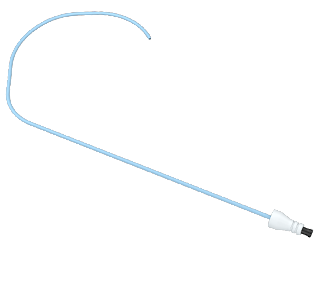

​Multiple angles and a shapeable extruded core aid in CS lead placement

​Worley curve available in standard, long and jumbo sizes, for CS access in any anatomy

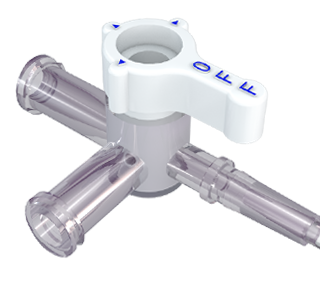

​Side port for “keep open” infusion and contrast injection

​Reduces risk of blood loss and air embolism

​Handles like standard peel-away introducer

​May be left in place during placement of other leads

​Permits lead exchange quickly, without further interventions or “sticks”

The H. Lee SafeSheath® CSG® splittable hemostatic sheaths are protected by Patent Insurance. USA Patent 7,462,184. European Patent EP1360972. Other USA and Worldwide Patents pending. SafeSheath and CSG are a registered trademarks of Pressure Products Medical Supplies, Inc.
