Specially designed to create the primary puncture in the interatrial septum when used with the SafeSept® Transseptal Guidewire

The SafeSept Blunt Needle™ replaces a traditional transseptal needle when using the SafeSept® Transseptal Guidewire for creating the primary puncture in the interatrial septum, providing access through the septum from the right side of the heart to the left side.



Designed to be used with the .014 inch diameter SafeSept®, the SafeSept Blunt Needle™ comes in equivalent lengths of 71 cm, 89 cm, and 98 cm, and is available in Curve 0 and Curve 1 shapes.

Reduce your risk of complications, and turn the stress of a transseptal stick into a routine procedure.

 TSN TRANSSEPTAL NEEDLE

Model

Description

Length

Size

Curve

Curve Angle

SBN071

71cm SafeSept Blunt Needle™

18G/21G

71cm

0

59°

SBN089

89cm SafeSept Blunt Needle™

18G/21G

89cm

0

59°

SBN098

98cm SafeSept Blunt Needle™

18G/21G

98cm

0

59°

SBN171

71cm SafeSept Blunt Needle™

18G/21G

71cm

1

72°

SBN189

89cm SafeSept Blunt Needle™

18G/21G

89cm

1

72°

SBN198

98cm SafeSept Blunt Needle™

18G/21G

98cm

1

72°

Each  SafeSept Blunt Needle kit includes:

One  needle

Five (5) kits per box

*Calculated from average SafeSept Blunt Needle™ and transseptal needle puncture forces during in vitro design qualification testing.



Features

SafeSept Blunt Needle™ requires 10% less insertion force*  than a standard transseptal needle when inserted over a SafeSept® Transseptal Guidewire

SafeSept Blunt Needle™ requires 36% less insertion force* with a SafeSept® Transseptal Guidewire  than a standard transseptal needle without a SafeSept® Transseptal Guidewire*

SafeSept Blunt Needle™ tip is less traumatic, requiring 2.5 times more force* to puncture than a standard transseptal needle tip without a SafeSept® Transseptal Guidewire*

­Non skiving design

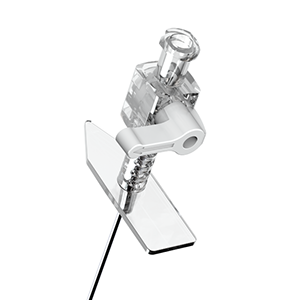

Clear hub to visualize devices and fluids

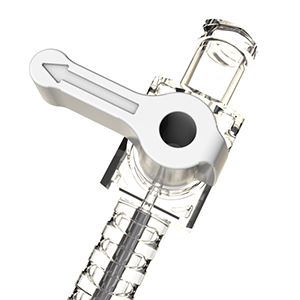

­Ergonomic hub with integrated stopcock and curve direction indicator

­Blunt Needle provides column support to any adult transseptal introducer system

Smooth bore on inside of cannula to facilitate smooth passage of SafeSept® Transseptal Guidewire

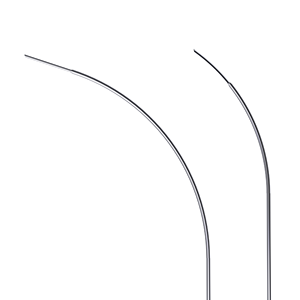

­Mimics shape of standard transseptal needle curves

­Available in Curve 0 and Curve 1 shapes
