SafeSheath® II Worley Right-sided Access
Hemostatic-valved CS/RV Introducer System
DESCRIPTION
SPECIFICATIONS
INFO / VIDEO
RELATED PRODUCTS

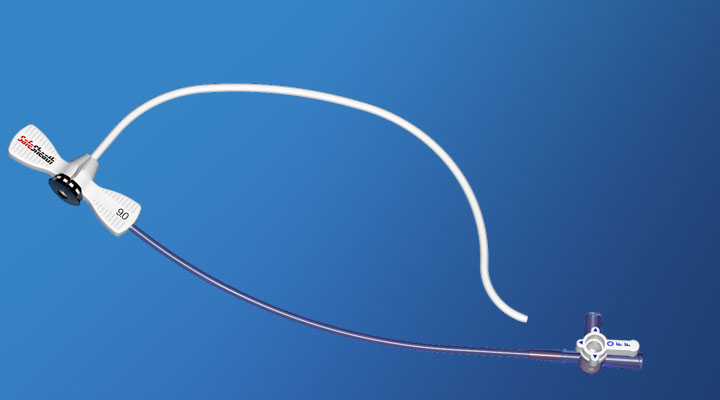

The unique curve of the SafeSheath II Worley Right-sided introducer is designed to gain access to the right atrium for subsequent delivery of catheters into the coronary sinus or pacing leads into the right ventricle, making right-sided LV or RV access as easy as coming from the left.
The SafeSheath II family of introducers combines a tear-away sheath and hemostatic valve to reduce back bleeding and the possibility of air embolism. The specially designed shape of the 23cm SafeSheath II Worley Right-sided Access Introducer makes right-sided LV or RV access as easy as coming from the left, virtually eliminating the kinking that sometimes occurs when approaching from the right side with a straight introducer.
The unique distal curve when positioned in the high RA, provides a convenient pivot point for directing CS access catheters to the coronary sinus, such as the SafeSheath Worley Telescopic LV introducer system, creating a stable work platform for better control during lead placement, and reduced risk of lead dislodgement during CS catheter removal. The Right-sided introducer is also perfect for placing leads into the right ventricle and right ventricular outflow tract.
The SafeSheath II Worley Right-sided Access Introducer is a breakthrough technology for left ventricular pacing from the right subclavian and is also an excellent platform for standard RV pacing.
Distal curve acts as a pivot point for CS access catheter, such as the SafeSheath Worley LV Introducer, providing stability and control during lead placement and removal
USA and Worldwide Patenets Pending.
SafeSheath is a registered trademark of Pressure Products Medical Supplies, Inc.
SAFESHEATH II WORLEY RIGHT-SIDED ACCESS INTRODUCER
Model
Size
Hub Color
Length
Dilator Length
SSR9
9.0 French
Black
23cm
28cm
Guidewire for SafeSheath II Worley Right-sided Access Introducer is 50cm long with O.D of .038"
Each SafeSheath II Worley Right-sided Access Introducer System kit includes:
One tear-away sheath w/side port
One dilator
One 18g needle
SafeSheath Worley Lateral Vein Introducers
Transvalvular Insertion Tool (TVI)
Features
Curved shape designed specifically for making LV or RV access as easy as approaching from left side
Enables access to the right atrium, for subsequent delivery of catheters into the coronary sinus or pacing leads into the right ventricle
Virtually no chance of kinking during right-sided access introduction
Uniquely shaped distal curve acts as a pivot point for CS access catheter, providing stability and control during lead placement and removal
Extruded score line peel-away sheath for clean, even peeling during removal
Ergonomic, easy-splitting break-away hub
Hemostatic valve with low insertion and withdrawal forces permits multiple lead insertions without further interventions
Elastomer snap-locking dilator connector with French size embossed on handle
