SafeSheath® CSG® Worley Extruded Core
Hemostatic Peel-away Introducer System for CS Access
DESCRIPTION
SPECIFICATIONS
INFO / VIDEO
RELATED PRODUCTS

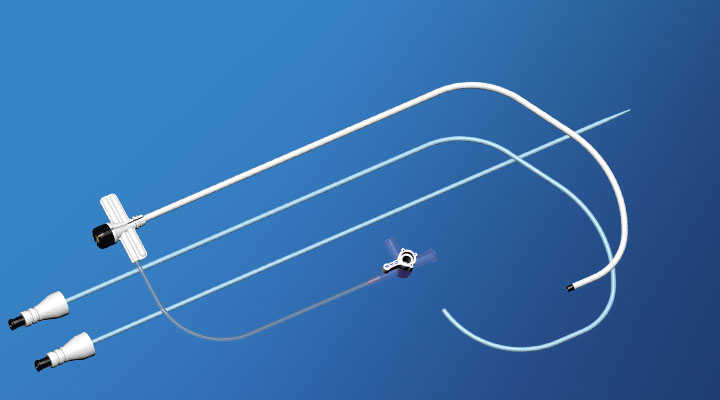

The SafeSheath CSG Extruded Core Series is a splittable-valved, peel-away hemostatic introducer system that combines a radiopaque-tipped sheath with a shapeable, extruded core for CS access.
SafeSheath CSG was designed to enter the coronary sinus and remain in position during angiography and lead placement, remaining hemostatic during subsequent procedures.
SafeSheath CSG Worley Incorporating a unique sheath curve, the Worley is designed specifically for ventricular resynchronization therapy where the right-sided chamber is significantly dilated, its long gentle throw causing its tip to virtually fall into the coronary sinus OS. The CSG Worley is also made from crush-resistant material and is available in standard, long and jumbo sizes.
SafeSheath CSG The multipurpose 90° curve of our original CSG enables ease of CS cannulation, while the improved tip transition results in less traumatic tip placement.
And now the introducer sheath is radio opaque-tipped for better fluoroscopic visualization.
All CSGs can be used as a coronary sinus access platform for our family of Worley Telescoping LV introducers.
Original
Long
Jumbo
Standard
The H. Lee SafeSheath® CSG® splittable hemostatic sheaths are protected by Patent Insurance. USA Patent 7,462,184. European Patent EP1360972. Other USA and Worldwide Patents pending. SafeSheath and CSG are a registered trademarks of Pressure Products Medical Supplies, Inc.
SAFESHEATH CSG EXTRUDED CORE SERIES
Size
9 French I.D.
Outer Diameter
0.157"
Inner Diameter
0.130"
Tip Inner Diameter
0.122"
Model
Curve
Length
CSG/WORLEY-1-09
Standard
40cm
CSG/WORLEY/L-1-09
Long
50cm
CSG/WORLEY-2-09
Jumbo
50cm
CSG-90-09
Jumbo
45cm
Each SafeSheath CSG Extruded Core Series
Introducer System kit includes:
One tear-away sheath w/side port
One dilator
One curved guiding core
One 18g needle
One 135cm guidewire
One transvalvular insertion tool (TVI)
Five (5) kits per box
Original
Long
Jumbo
Standard
SafeSheath CSG Hemostatic Introducer System LV Lead Placement 10:26
x
How to Achieve Left Ventricular Lead Placement via the Coronary Sinus 16:43
x
SafeSheath Worley LV Introducers
Transvalvular Insertion Tool (TVI)
Balloon Venography Catheter
Features
Innovative peel-away sheath with break-away hemostasis valve and radio opaque tip
Multiple angles and a shapeable extruded core aid in CS lead placement
Worley curve available in standard, long and jumbo sizes, for CS access in any anatomy
Side port for “keep open” infusion and contrast injection
Reduces risk of blood loss and air embolism
Handles like standard peel-away introducer
May be left in place during placement of other leads
Permits lead exchange quickly, without further interventions or “sticks”
