SafeSheath® Worley Telescopic LV Introducer
for Sub-selective Access During LV Lead Placement

DESCRIPTION

SPECIFICATIONS

INFO / VIDEO

RELATED PRODUCTS

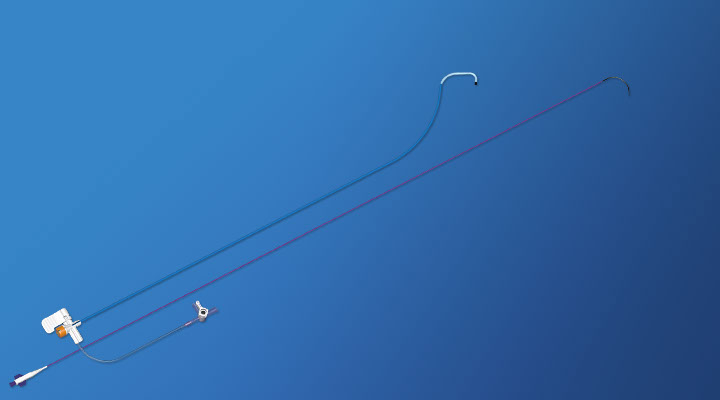

Available in 7 French I.D., the SafeSheath® Worley Telescopic  Lateral Vein Introducer (LVI) System is designed to improve lead position and prevent implant failures while reducing implant times 30-50% and facilitate access into angulated venous branches while providing better lead stability to avoid high pacing thresholds or phrenic pacing.

Reduce Implant Times 30-50% Successful Cardiac resynchronization therapy (CRT) requires accurate delivery of the pacing lead to specific postero-lateral epicardial LV pacing sites via the coronary sinus. Available in four unique curves, the LVI provides sub-selective access to the target vein. When combined with our new Target Vein Selector, better, more reliable access to the chosen vessel is achieved, no matter what the situation.

When deployed through the LVI, the 5 French O.D. Target Vein Selector is the easiest way to locate and cannulate the target vein, serving as a “rail” for advancing the LV introducer into the vein.

For delivery of larger, more stable leads, the LVI’s braided construction and multidurometer reinforced proximal curve delivers increased torque control and tip directivity, providing needed support and stability during procedures.

Improved Visualization Contrast injection is easily accomplished with the SafeSheath LVI’s convenient sideport, while the radiopaque tip marker enhances fluoroscopic visualization during procedures.

Easy Removal The unique, breakaway hub requires no plastic to cut through, reducing the risk of lead dislodgement. One side of the hub has an integrated handle which stays firmly attached to the sheath, helping with control and stability during slicing and removal. Finally, the advanced material of the LVI sheath offers uniform resistance during slicing with the user-friendly cutter.

Right for All Situations Together, the  SafeSheath CSG, Worley Telescopic LVI and Target Vein Selector help you avoid the problems associated with LV lead placement AND reduce your implant times 30-50%.

With the LVI fixed just inside the CSG, the Target Vein Selector is advanced into the coronary sinus and the target vein identified with puffs of contrast.

The Target Vein Selector is advanced into the target vein, followed by the guidewire.

The LVI is easily advanced over the wire and vein selector into the target vein.

The Target Vein Selector is removed, retaining the LVI and wire.

The H. Lee SafeSheath® CSG® splittable and SafeSheath® CSG® Braided sliceable hemostatic sheaths are protected by Patent Insurance. USA Patents 5,409,463, 6,966,896, 7,384,422 and 7,993,351. Japanese Patent 4695878. European Patents EP0593685, EP1539277 and EP1542630. The Braided Sheath Cutter is covered by USA Patent 6,497,681. Other USA and Worldwide Patents pending. SafeSheath and CSG are registered trademarks of Pressure Products Medical Supplies, Inc.

SAFESHEATH WORLEY TELESCOPIC LV INTRODUCER WITH TARGET VEIN SELECTOR

Model

Shape/Curve

Length

Size

Max.O.D.

Min.O.D.

Min. Tip I.D.

LVI/75-5-62-07-RE

Renal/Compound

62cm

7F I.D.

0.120"

0.090"

0.090"

LVI/75-5-62-07-HO

Hook/80°

62cm

7F I.D.

0.120"

0.090"

0.090"

LVI/75-5-62-07-HS

Hockey stick/120°

62cm

7F I.D.

0.120"

0.090"

0.090"

LVI/75-5-62-07-MP

Multi-purpose/67°

62cm

7F I.D.

0.120"

0.090"

0.090"

Each SafeSheath Worley Telescopic LV Introducer System kit includes:

One braided sliceable sheath w/side port

One target vein selector

One braided sheath cutter

One transvalvular insertion tool (TVI)

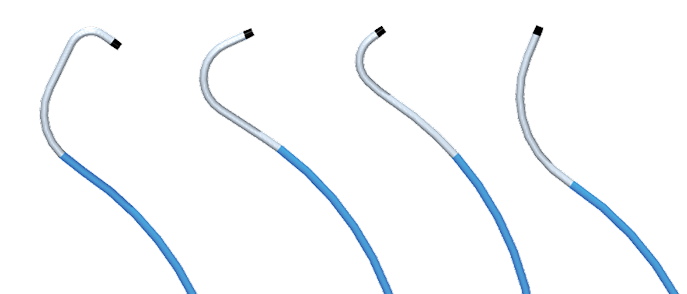

Renal Curve

Hockey Stick Curve

Hook Curve

Multi-purpose Curve

DOWNLOADS

VIEW

Video Demonstration

Video Demonstration

SafeSheath CSG Worley Introducers

Contrast Administration Kit

SafeSheath II Worley Right-sided Access Introducer

Transvalvular Insertion Tool (TVI)

Balloon Venography Catheter



Features

7 French I.D. introducer provides support and stability for easier, reliable delivery of larger, more stable leads despite tortuous anatomy

5 French O.D. Target Vein Selector makes target vessel identification and guide wire placement a snap, greatly reducing implant times

Unique combination of proximal and distal curves for sub-selective access to angulated lateral vein branches

Braided sheath construction for better torque control and stability with multidurometer proximal curve for improved tip directivity

Break-away hub with integrated handle requires no cutting and provides a secure grip during slicing, reducing the risk of lead dislodgement during removal

Radiopaque tip marker on introducer for enhanced fluoroscopic visualization

Easy-to-use slicer mates to the SafeSheath hub to create a stable platform for the cutting hand

Side port for "keep open" infusion and contrast injection

Reduces risk of blood loss and air embolism
